Output
Output power capacity
900Watts / 1.5kVA
Max Configurable Power (Watts)
900Watts / 1.5kVA
Nominal Output Voltage
120V
Output Frequency (sync to mains)
60 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave

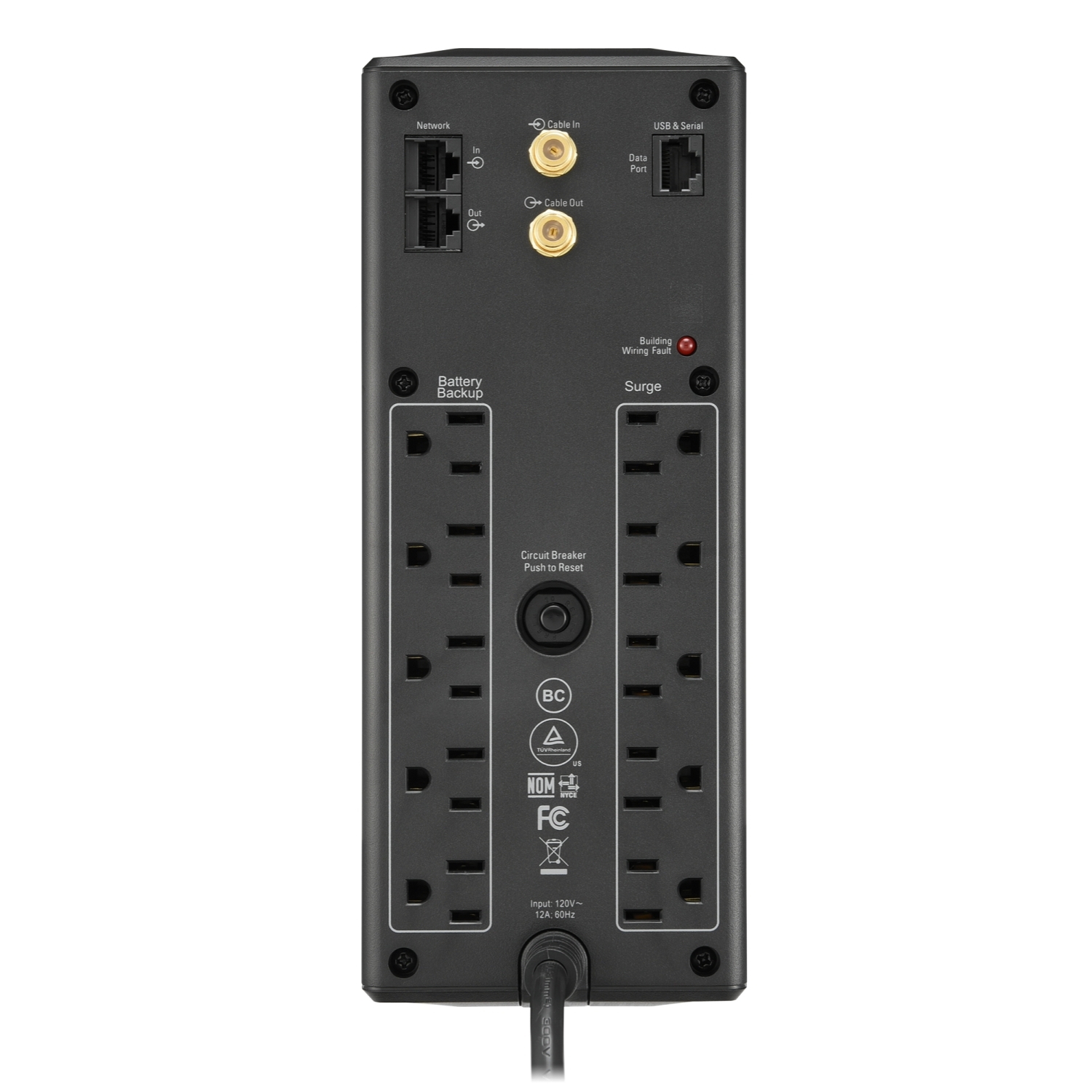

Output Connections
(5) NEMA 5-15R (Surge Protection)
(5) NEMA 5-15R (Battery Backup)
Transfer Time
8ms typical : 10 ms maximum
Input
Nominal Input Voltage
120V
Input frequency
60 Hz +/- 3 Hz
Input Connections
NEMA 5-15P
Cord Length
6ft (1.83meters)
Input voltage range for main operations
88 – 139V
Maximum Input Current
12.0A
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
16hour(s)
Replacement Battery
RBC Quantity
1
Battery Volt-Amp-Hour Capacity
172
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s)
USB

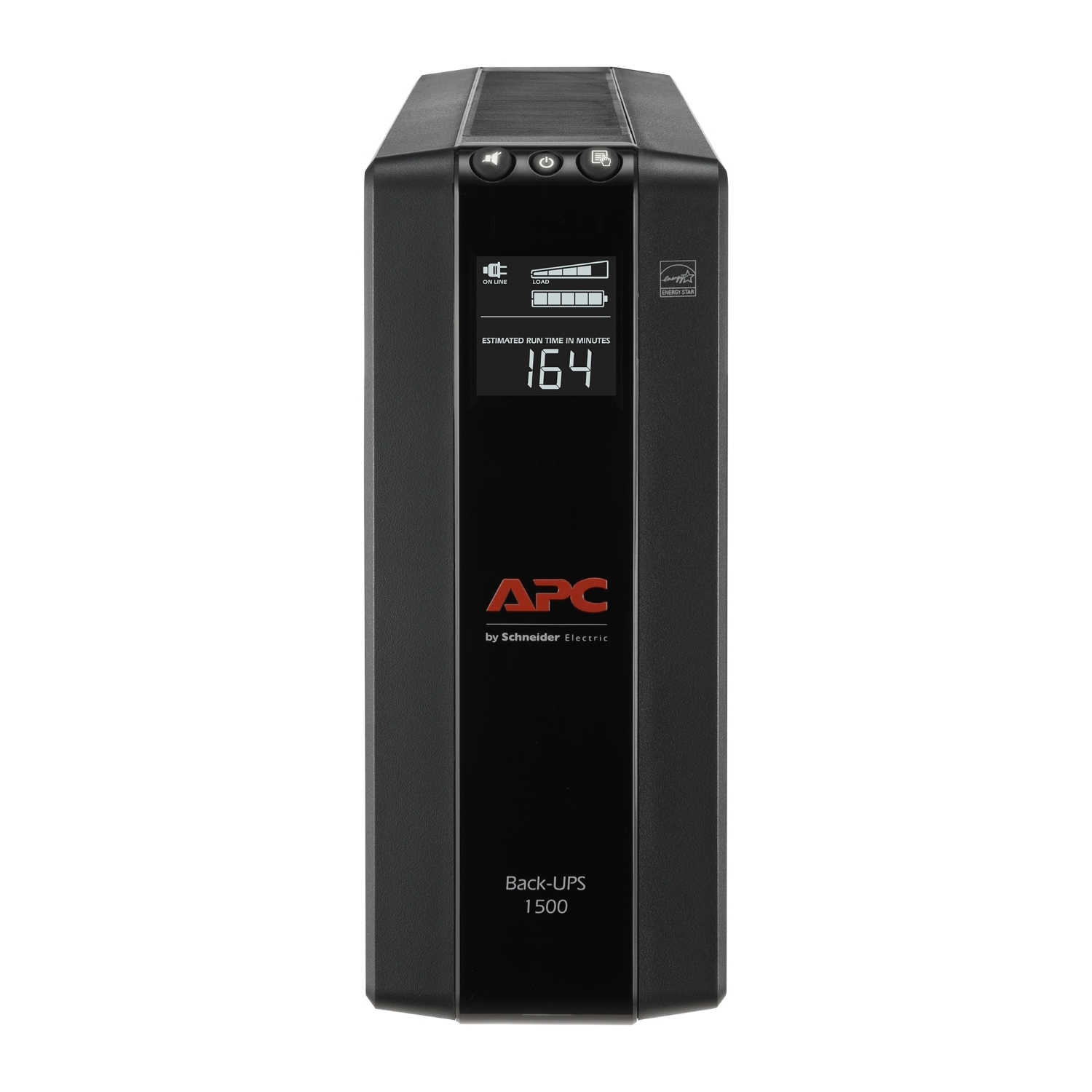

Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
789Joules
Data Line Protection
Network line – 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
Filtering
Full time multi-pole noise filtering : 5{99e2bc16a2f6d40b2a16a7637b1c60ce0a7435dfb88ca3fa80c384b418f7dc87} IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
9.84inches (250MM, 25.0CM)
Maximum Width
3.94inches (100MM, 10.0CM)
Maximum Depth
15.04inches (382MM, 38.2CM)
Net Weight
24.25lbs. (11.0KG)
Shipping weight
28.0lbs. (12.7KG)
Shipping Height
13.7inches (348MM, 34.8CM)
Shipping Width
8.94inches (227MM, 22.7CM)
Shipping Depth
19.33inches (491MM, 49.1CM)
Units per Pallet
32.0
SCC Codes
1073130433178 7
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 {99e2bc16a2f6d40b2a16a7637b1c60ce0a7435dfb88ca3fa80c384b418f7dc87}
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 40 °C
Storage Relative Humidity
0 – 95 {99e2bc16a2f6d40b2a16a7637b1c60ce0a7435dfb88ca3fa80c384b418f7dc87}
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
67.6BTU/hr
Conformance
Approvals
California (CEC) Battery Charger, ENERGY STAR V2.0 (USA), FCC Part 15 Class B, TUV C-US certified
