Description
CPU
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
* This function will be supported depend on the CPU.
Chipset
- AMD® A320 Chipset
Main Memory
- 2 x DDR4 memory slots, support up to 32GB
- Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz*
- Dual channel memory architecture
- Supports ECC UDIMM memory (non-ECC mode)
- Support non-ECC UDIMM memory
* A-series / Athlon™ X4 processors support a maximum of DDR4 2400 Mhz. Please refer www.msi.com for more information on compatible memory
* Please refer www.msi.com for more information on compatible memory
Slots
- 1 x PCIe 3.0 x16 slots
– Supports x 16 speed with RYZEN Series Processors
– Supports x8 speed with AMD® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
– Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
- 2 x PCIe 3.0 x1 slots
Onboard Graphics
- 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz[1,2]
- 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz[1,2]
- Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
- Maximum shared memory of 2048 MB
Storage
- AMD® A320 Chipset
- 4 x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
USB
- AMD® A320 Chipset
– 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
– 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)
Audio
- Realtek® ALC887 Codec
– 7.1-Channel High Definition Audio
LAN
- 1 x Realtek® 8111H Gigabit LAN controller
Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 4 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connector
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 2 x Serial port connector
– 1 x Clear CMOS jumper

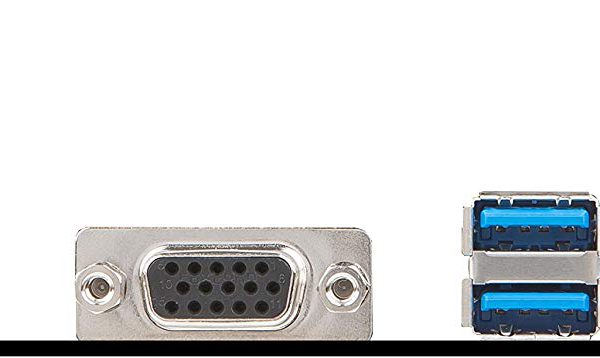

Back Panel I/O Ports
– 1 x PS/2 keyborard/ mouse combo port
– 2 x USB 2.0 Type-A ports
– 1 x HDMI™ port
– 1 x VGA port
– 1 x LAN (RJ45) port
– 4 x USB 3.1 Gen1 Type-A ports
– 3 x audio jacks
Dimension
- 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
- m-ATX Form Factor
Mounting
- 6 mounting holes
Operating System
- Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
