Description
Name / Brand / Architecture |
|
| Manufacturer: | MSI |

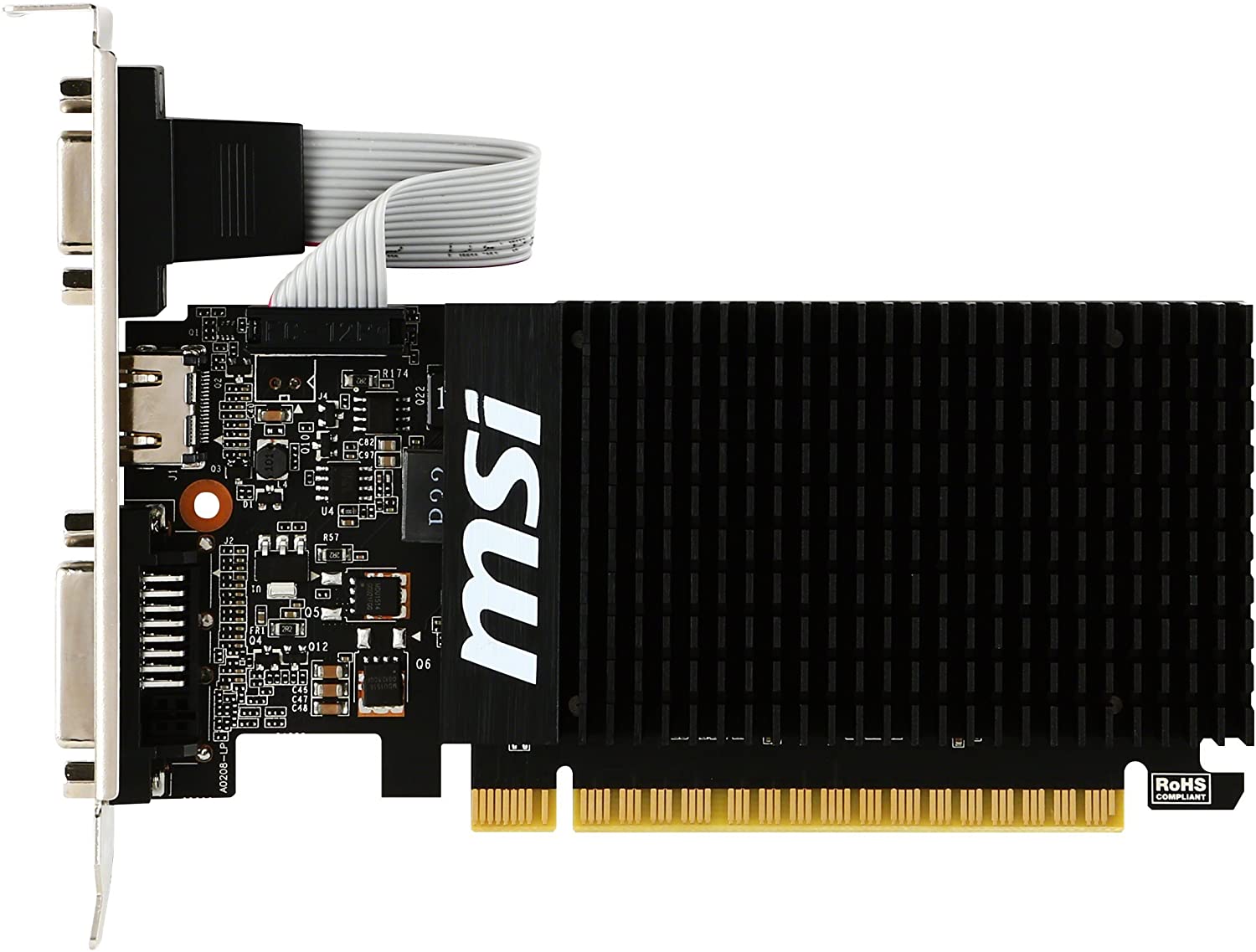

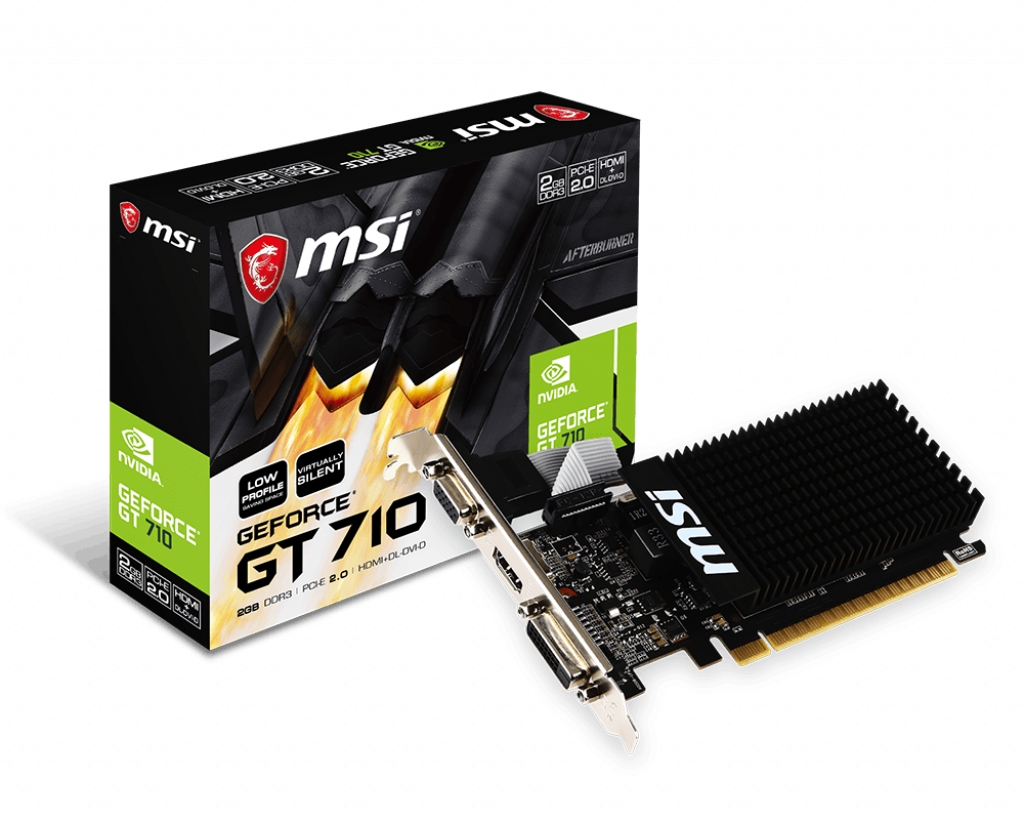

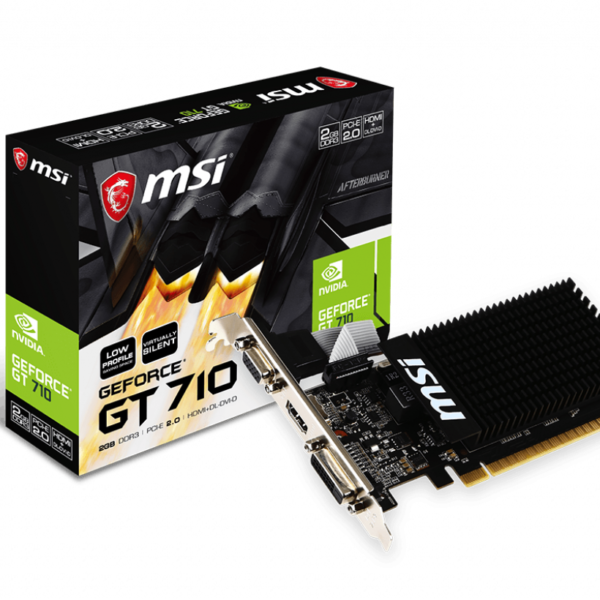

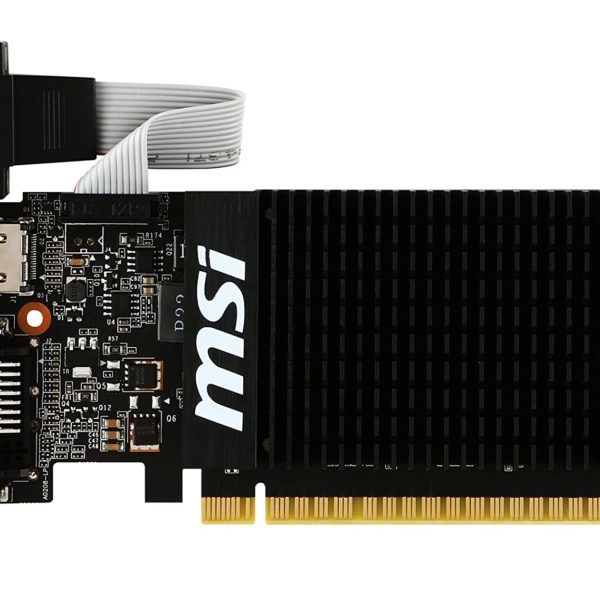

| Model: | GeForce GT 710 2GB |
| Part number: | GT 710 2GD3 |
| Based on: | NVIDIA GeForce GT 710 [Compare] |
| Target market segment: | Desktop |
| Die name: | GK208 |
| Architecture: | Kepler |
| Fabrication process: | 28 nm |
| Bus interface: | PCI-E 2.0 x 16 (8 lanes) |
Frequency |
|
| Graphics clock: | 954 MHz |
Memory specifications |
|
| Memory size: | 2048 MB |
| Memory type: | DDR3 |
| Memory clock: | 800 MHz |
| Memory clock (effective): | 1600 MHz |
| Memory interface width: | 64-bit |
| Memory bandwidth: | 12.8 GB/s |
Cores / Texture |
|
| CUDA: | 3.5 |
| CUDA cores: | 192 |
| ROPs: | 8 |
| Texture units: | 16 |
| RAMDACs: | 400 MHz |
Electric characteristics |
|
| Maximum GPU temp: | 95 C |
| Maximum power draw: | 19 W |
Video features |
|
| Maximum digital resolution: | 4096 x 2160 |
| Maximum DVI resolution: | 2560 x 1600 |
| Maximum HDMI resolution: | 4096 x 2160 @ 24 Hz or 3840 x 2160 @ 30 Hz |
| Maximum VGA resolution: | 2048 x 1536 |
| Anti-Aliasing technologies: | FXAA TXAA |
| HDMI: | Yes |
| HDMI version: | 1.4a |
Performance |
|
| Pixel fill rate: | 7.63 Gigapixels/s |
| Texture fill rate: | 15.26 Gigatexels/s |
| Single presision compute power: | 366.34 GFLOPS |
External connectors |
|

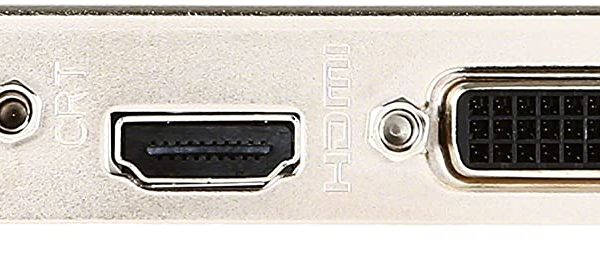

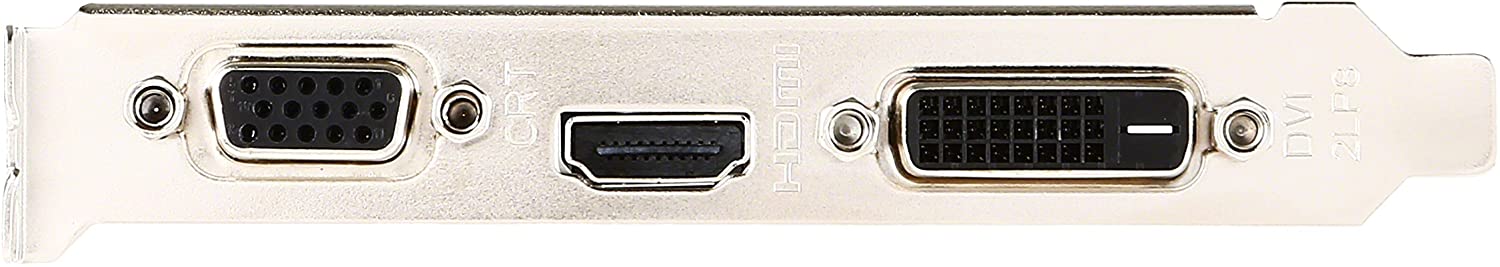

| Standard display connectors: | Dual Link DVI-D HDMI VGA |
| Audio input for HDMI: | Yes |
Dimensions |
|
| Size (length x height): | 5.75 inches (146 mm) x 4.21 inches (107 mm) |
| Width: | Dual Slot |
Other features / Support |
|
| Other features: | 3D Vision ? Direct Compute 5.0 HDCP PhysX |
| Open CL support: | 1.1 |
| OpenGL support: | 4.5 |
| DirectX support: | 12.0 |
| Vulkan support: | Yes |
| Shader model: | 5.0 |
