Description
Standard&Protocol
IEEE802.3，IEEE802.3u，IEEE802.3ab

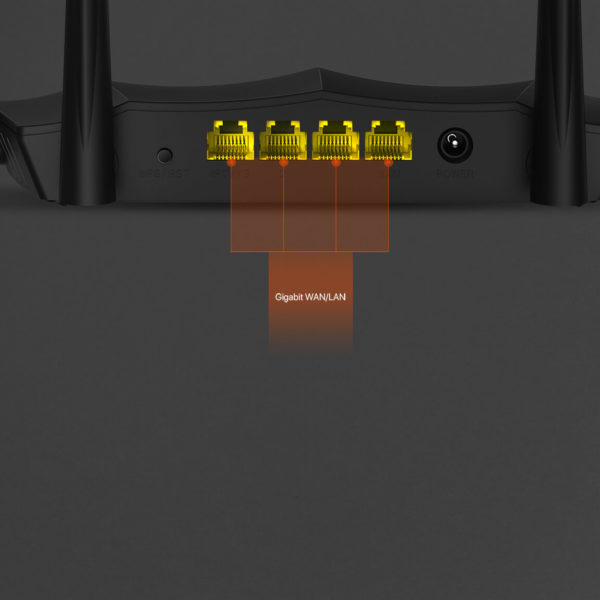

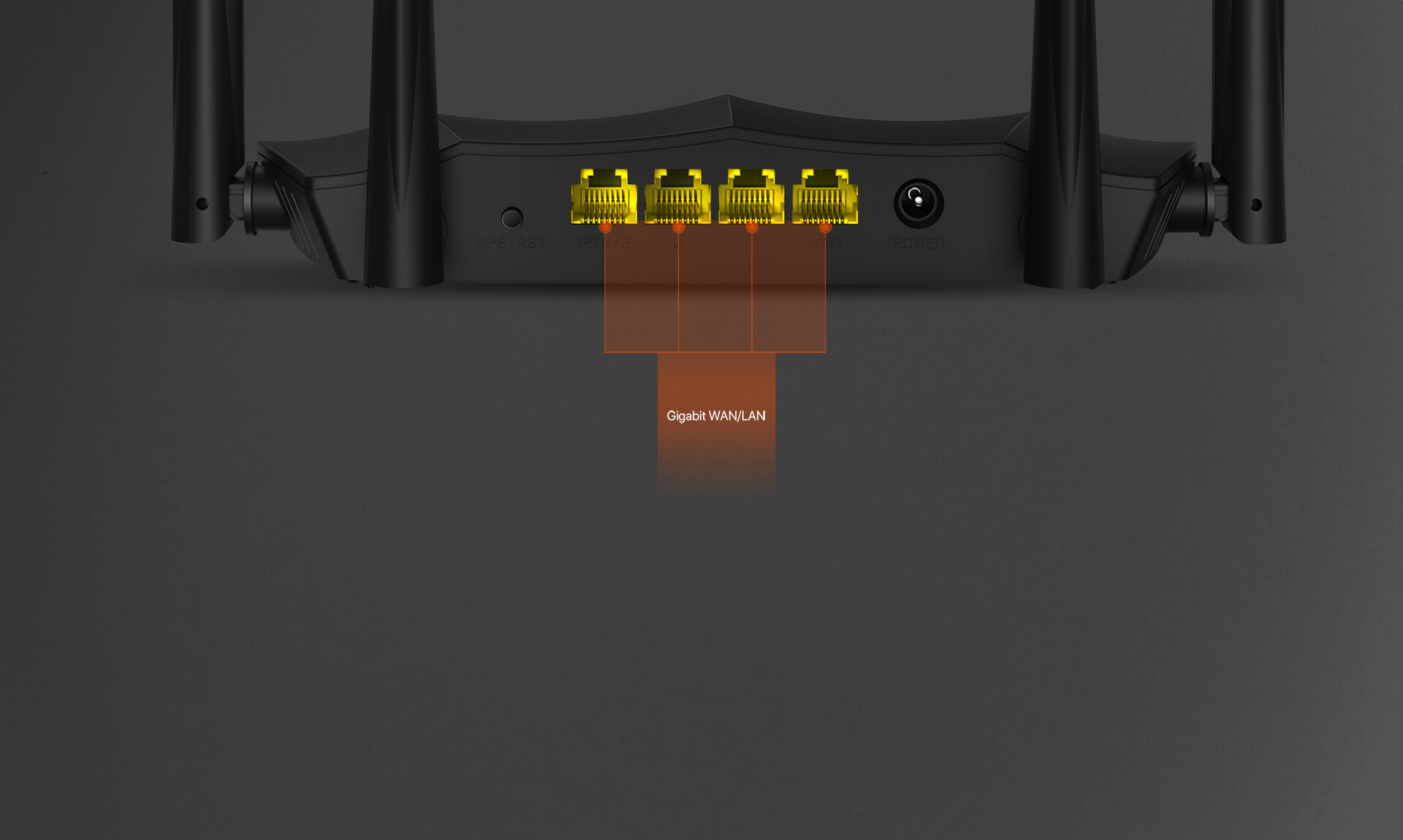

Interface
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports

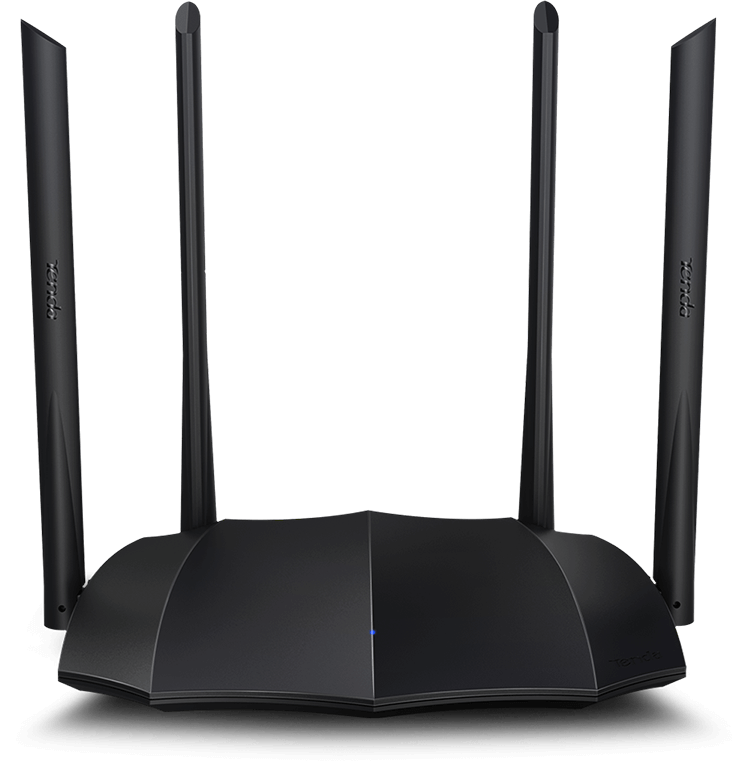

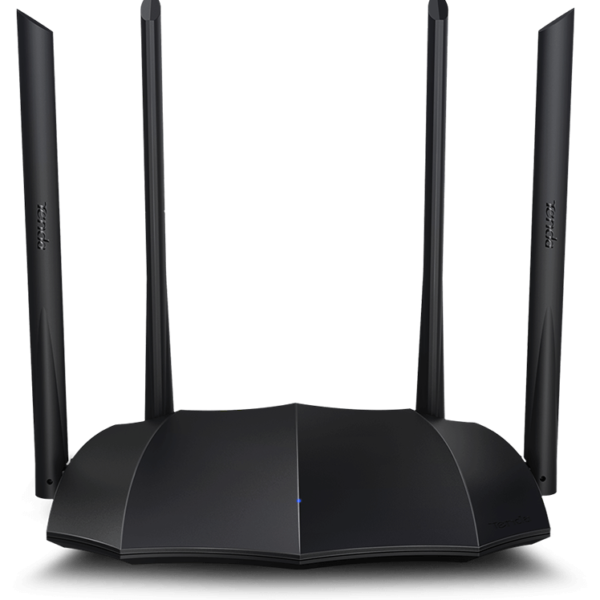

Antenna
4*6dBi external dual band antennas
Button
1*WPS/Reset button
Power
Input：AC 100-240V—50/60Hz
Output：DC 9V 1A
LED indicator
1*LED
Dimension
200x127x33.6mm(L*W*H)
Wireless Standards
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
Data Rate
2.4GHz: 300Mbps
5GHz: 867Mbps

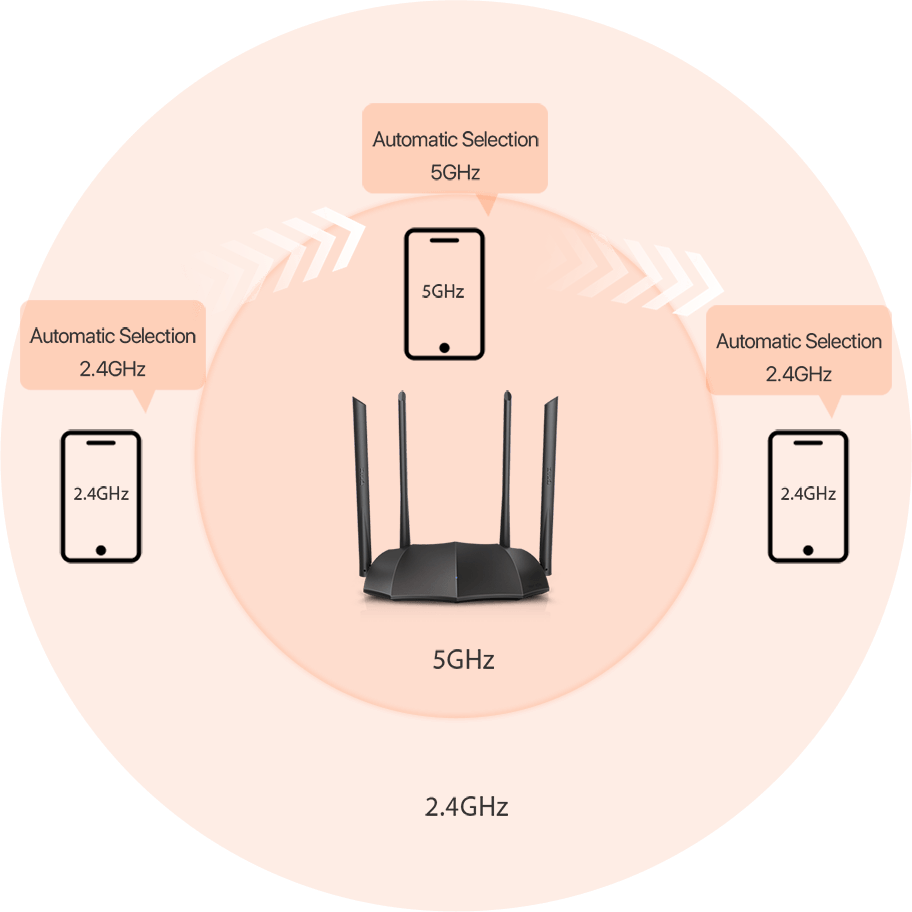

Frequency
2.4GHz & 5GHz
Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security : Enable /Disable
Internet Connection Type
PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer
Operating Mode
Wireless Router Mode
AP Mode
Universal Repeater mode
WISP Mode
DHCP
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwaring
DMZ Host
UPnP
Security
Client Filter（supports black list and white list）
Parental Control（supports black list and white list）
Remote Web Management
Firewall
Forbid WAN PING from internet
DDNS
Support DynDNS, 88ip
Other Function
Broadband management
MAC address clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade from local
Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings
Default Access: tendawifi.com or http://192.168.0.1
Certification
CE，FCC，CCC，SRRC
Package Content
Wireless Router*1
Gigabit Ethernet Cable*1
Power Adapter*1
Installation Guide*1
